SKYLINE ENIGMA VEHICLE TRACKING PVT LTD
In 2003 Enigma took a large step forward and commissioned the Skyline advanced vehicle tracking and security system. The intention was to offer a world class security. Tracking and fleet management system with the flexibility to use products appropriate for the application. Skyline went Live in July 2004 and has become one of the market leading systems, especially in the construction, utility and plant rental business. Theft recovery has been so successful that, to the end of 2007, over #42 million of plant had been recovered using Skyline.

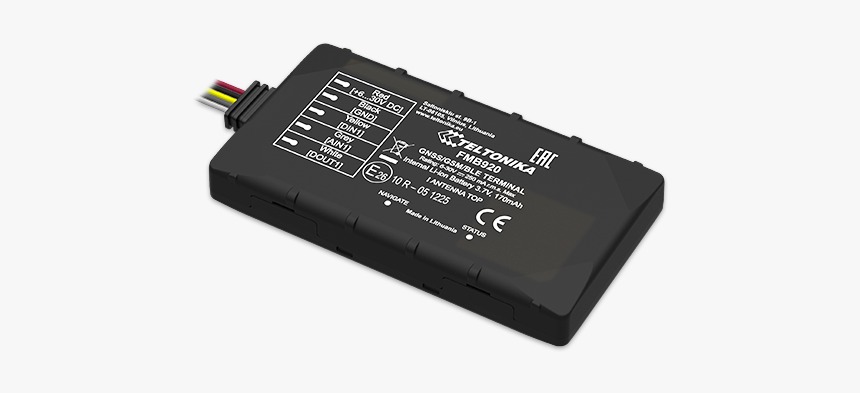

FM0920 TRACKING DEVICE The smallest FM we’ve ever made
DESCRIPTION

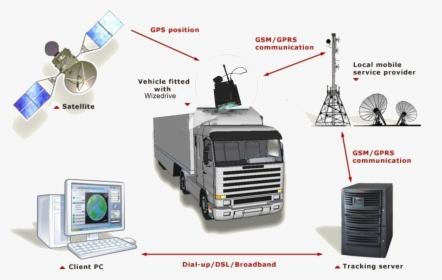

FM0920 is light real-time tracking terminal with GPS/Glonass, GSM connectivity which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: security, fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
Applications:
- Track and Trace
- Road assistance
- Personal Car’s and Van tracking
- Fleet Management
- Tracking ( Pin point location).
- Parameterized operation (acquire & send).

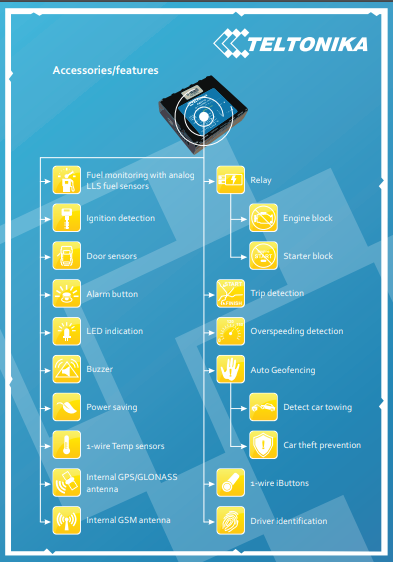

Integrated scenarios
* Green driving (ratings of acceleration,(harsh) breaking, cornering).
* Over speeding.
* Authorized driving (50 i Button keys).
* Immobilizer.
SPECIFICATIONS
► Quad-band 900/1800 MHz; 850/1900 MHz
► GPRS class 10 (up to 85,6 kbps)
► SMS (text)
► 32 channel GPS/Glonass receiver -162 dBm sensitivity
► 1 Digital Input
► 1 Analog Input
► 1 Digital Open-collector Output (connecting external relays, LED, buzzers etc.)
► Motion sensor
► Power supply (+10…+30) V DC with overvoltage protection
► Internal High Gain GPS/Glonass antenna
► Internal High Gain GSM antenna
► Dimensions: L(79mm)xW(43mm)xH(12mm)
► 2 Status LED
► 170 mAh Integrated back up battery
► Fast position fix
► High Quality track even in high density urban canyon
► Ultra Small Case
► Ready for harsh environment
► Color Ribbon nondetachable cable
► Easy to mount in limited access areas
► Firmly fasten
► High Gain internal GPS/Glonass and GSM antennas
► 2 LED indication
► Integrated back up battery
Real-Time tracking
► Smart data acquisition based on:
► Time
► Distance
► Angle
► Ignition or any other I/O events
► Sending acquired data via GPRS
► GPRS and SMS I/O Events
► Virtual Odometer
► 10 configurable geofence zones
► Configurable using Secured SMS Commands
PRODUCTS & SERVICES
Tracking Equipment (One time)
FM0920
|
FM0920 Unit Cost |
10500
|
|
Monitoring Charges anual |
8000 |
|
Total amount |
18500
|
Note: we have specific discounted criteria for corporate customer.
Vehicles self Monitoring service.
Important Notes:
- A charge of Rs.3500 is payable if you wish to transfer the equipment from vehicle to another vehicle
OTHER TERMS & CONDITIONS
- Payment Terms
- Tracking Equipment (one time) & without (A.M.C) annual monitoring charges

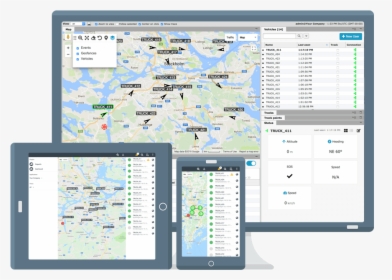

Mobile application for monitoring (FREE). advance along with purchase order.
- Installation Time
- On receipt of confirmed order and required advance payment we will complete the job within 10 Days. We will require details of vehicles (type/make/engine) with location where it is to be installed. Any delays caused to unavailability of vehicles shall be to your account.
- Warranty FM0920 has One Year Warranty
- (except water damage, vehicle electrical wiring problems that effects on tracking unit ) from date of installation.
- However, damages due to vehicles’ electrical system failure or poor maintenance and misuse or damage due to operator is not covered and shall be repaired / replaced on chargeable basis.
- Government Taxes
- All applicable taxes at time of quoting have been included and GST payable has been mentioned accordingly.
If you have any question or query regarding Fleet management solution kindly contact below mention contact number.
Skyline Enigma Vehicle Tracking (Pvt.) Ltd.
Shahid Hussain
Contact : 03150000123 , 03097400006
